Types of Pumps by Operating Principle

When you watch water flowing from a well, gasoline moving through pipelines, or chemicals circulating in factories, various types of pumps are hard at work. Pumps are the driving force behind fluid transport systems, converting mechanical energy into hydraulic energy to move fluids from one place to another. The core principle involves creating pressure differences that push fluids from areas of low pressure to high pressure.

All pumps operate using one of two fundamental methods to convert energy. Understanding these basic principles can help engineers and facility managers make informed decisions about their fluid handling needs. For applications requiring contamination-free fluid transfer and precise flow control, Watson Marlow pumps offer industry-leading peristaltic technology that ensures reliable performance across demanding industrial processes.

How Does a Pump Work?

All pumps modify the pressure in some manner, but they all do so in different ways. Positive displacement pumps and dynamic pumps both work in two main ways. Dynamic pumps may add energy to fluids by using rotating, impeller-driven fluid acceleration and changing kinetic energy into pressure. Positive displacement pumps, on the other hand, move a set amount of liquid from one location to another using chambers or cavities.

These operational principles are the most important since they decide things like how well something works, how helpful it is, and how much upkeep it requires. Dynamic pumps are best for jobs that need a lot of flow at a low pressure. On the other hand, positive displacement pumps let you regulate the flow very precisely and work well in high-pressure situations.

Dynamic Pumps: Velocity-Based Energy Transfer

Dynamic pumps operate by imparting kinetic energy to fluids through rotating impellers. As the impeller spins, centrifugal force accelerates the fluid outward, creating velocity that subsequently converts to pressure energy within the pump casing.

Centrifugal Pumps: The Industrial Standard

Centrifugal pumps represent the most common dynamic pump design across industrial applications. These pumps feature curved impeller blades that accelerate fluid radially outward from the center. The rotating motion creates centrifugal force, pushing liquid toward the pump’s outer diameter while drawing more fluid into the impeller’s eye.

Key characteristics of centrifugal pumps include:

• High flow rates with moderate pressure capabilities
• Smooth, continuous flow with minimal pulsation
• Self-priming capabilities when properly installed
• Relatively simple maintenance requirements
• Cost-effective manufacturing and operation

Specialized Dynamic Pump Variations

Beyond standard centrifugal designs, several specialized dynamic pumps serve specific applications:

Axial Flow Pumps: These pumps move fluid parallel to the impeller shaft, generating high flow rates at low pressures. They function similarly to propellers, making them excellent for irrigation and flood control applications.

Mixed Flow Pumps: Combining radial and axial flow characteristics, these pumps offer balanced performance between flow rate and pressure development.

Jet Pumps: Using high-velocity fluid streams to create suction, jet pumps can lift fluids from significant depths without moving parts in the fluid source.

Positive Displacement Pumps

Positive displacement pumps move fluids by trapping fixed volumes within chambers and mechanically forcing those volumes through the discharge. This operating principle ensures consistent flow rates regardless of pressure variations, making these pumps ideal for metering and high-pressure applications.

Reciprocating Pumps

Piston and Plunger Pumps: These mechanical pumps use back-and-forth motion to create suction and discharge cycles. During the intake stroke, pistons create vacuum that draws fluid into cylinders. The discharge stroke then forces fluid out through check valves. These pumps handle extremely high pressures and provide excellent flow control.

Diaphragm Pumps: Utilizing flexible membranes instead of pistons, diaphragm pumps offer contamination-free fluid handling. The diaphragm flexes to create volume changes that move fluid through the pump without direct contact between mechanical parts and the pumped liquid.

Rotary Positive Displacement Pumps

Gear Pumps: Two meshing gears create sealed chambers that transport fluid from suction to discharge. As gear teeth mesh and unmesh, they trap fluid volumes and force them through the pump housing. These pumps handle viscous fluids effectively while maintaining steady flow rates.

Lobe Pumps: Similar to gear pumps but with larger clearances, lobe pumps provide gentle fluid handling for shear-sensitive materials. The non-contacting lobes create sealed chambers without metal-to-metal contact, reducing wear and contamination risks.

Screw Pumps: Multiple intermeshing screws create continuous sealed chambers that move fluid axially through the pump. This design produces smooth, pulsation-free flow while handling high pressures and viscous fluids.

Peristaltic Pumps: Biological-Inspired Design

Watson marlow peristaltic pump technology represents a unique positive displacement approach that mimics biological peristalsis. Rollers or shoes compress flexible tubing in a sequential pattern, creating waves of compression that move fluid through the tube. This mechanism ensures that only the tube interior contacts the pumped fluid, eliminating contamination risks.

Peristaltic pump advantages include:

• Complete fluid isolation from pump components
• Self-priming capabilities up to significant heights
• Gentle handling of shear-sensitive materials
• Reversible flow direction
• Simple maintenance through tube replacement

These pumps serve pharmaceutical, food processing, and chemical applications where maintaining fluid purity is essential. The peristaltic operating principle makes them particularly suitable for handling corrosive chemicals, biological samples, and sterile solutions.

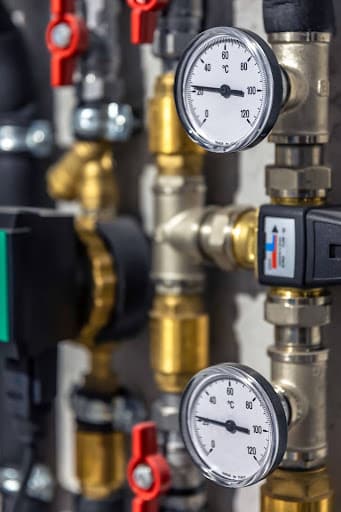

Types of Pumps Selection Criteria

Choosing appropriate pump technology requires understanding how operating principles affect performance characteristics. Consider these key factors:

Flow Rate Requirements:

• Dynamic pumps: High flow rates, variable performance
• Positive displacement: Consistent flow regardless of pressure changes

Pressure Capabilities:

• Centrifugal pumps: Moderate pressures, high flows
• Reciprocating pumps: Extremely high pressures, lower flows
• Rotary positive displacement: Balanced pressure and flow characteristics

Fluid Characteristics:

• Viscosity: Positive displacement pumps handle thick fluids better
• Temperature: Material selection becomes critical for hot applications
• Chemical compatibility: Pump material and fluid interaction considerations
• Contamination sensitivity: Peristaltic pumps offer superior isolation

Maintenance and Performance Optimization

Operating principles directly influence maintenance requirements and performance characteristics. Dynamic pumps typically require impeller inspection, bearing maintenance, and seal replacement. Positive displacement pumps need valve maintenance, chamber inspection, and component replacement based on wear patterns.

Preventive maintenance schedules should consider:

• Operating duty cycles and load variations
• Fluid characteristics and their effects on pump components
• Environmental conditions affecting pump performance
• Energy efficiency optimization through proper sizing and operation

Making Informed Pump Decisions

Learning how pumps function might help you make better choices about how to regulate industrial fluids. Positive displacement pumps are the best choice for jobs that need high pressure and accurate metering. Dynamic pumps, on the other hand, work well for huge flow and continuous use. When choosing types of pumps, you need to consider about how well they work, how much they cost to run, and how much maintenance they need.

AMED-US, which sells comprehensive pump systems across Latin America and the United States, can help you choose the finest pump technology. You can be sure that you’re picking the proper pump for your needs since they know how to use it in a way that will help you be successful and efficient in the long term.
