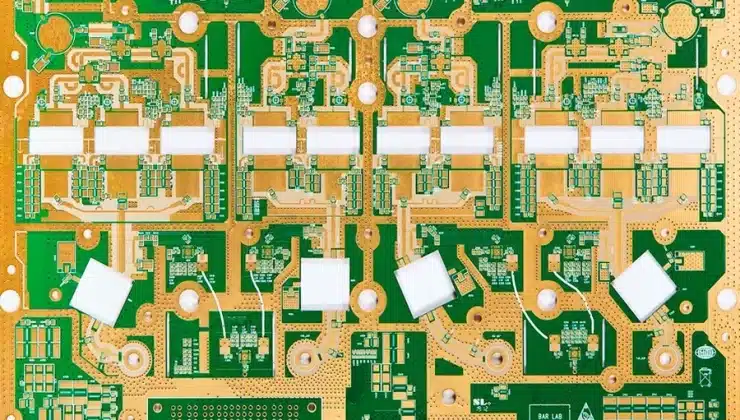

The Importance of Material Selection in High Frequency PCB Design
When designing High Frequency PCBs (Printed Circuit Boards), material selection is one of the most crucial factors that determine the performance, reliability, and longevity of the final product. The high-speed, high-frequency signals that these PCBs carry are highly sensitive to material properties such as dielectric constant (Dk), dielectric loss (Df), and thermal stability. As a result, choosing the right materials is paramount to ensure that the PCB functions effectively in demanding applications like 5G communications, aerospace technology, radar systems, and satellite communications.
In this article, we will explore how material selection impacts the performance of high-frequency PCBs and discuss the key material properties that designers need to consider for optimal design.
Key Material Properties for High-Frequency PCB Design
1. Dielectric Constant (Dk)
The dielectric constant, also known as relative permittivity, measures the ability of a material to store electrical energy in an electric field. For high-frequency PCBs, Dk is a crucial property that influences how signals propagate through the material. A material with a high dielectric constant will cause a signal to travel more slowly, whereas a material with a low dielectric constant will allow the signal to travel faster.
In high-frequency applications, controlling the dielectric constant is vital because it affects signal speed and impedance control. Signal propagation is slower in materials with higher Dk values, which can introduce signal delay and attenuation. Therefore, materials with a low Dk, such as Rogers and PTFE (Teflon), are often used in high-frequency designs for faster signal transmission and better signal integrity.
Did you know? High-performance materials like Rogers RO4000 series and Rogers RO3000 offer low Dk values and low loss, making them ideal for RF and microwave applications.
2. Dielectric Loss (Df)
Dielectric loss (Df) refers to the energy dissipated as heat when an alternating current (AC) signal passes through the material. This loss is particularly important for high-frequency PCBs because it affects signal quality and efficiency. As the frequency of the signal increases, dielectric loss becomes more significant, leading to higher attenuation and potential degradation of the signal.
Low Df values are essential for high-frequency PCBs to reduce power loss, maintain signal integrity, and avoid unnecessary heat buildup. Materials with low dielectric loss, such as PTFE and ceramic-based materials, are typically used in high-frequency designs to minimize signal attenuation and heat generation.
3. Thermal Stability
High-frequency PCBs are often exposed to heat, especially in power-sensitive applications. In these environments, thermal stability becomes a critical consideration. Materials that exhibit poor thermal stability can cause shifts in the dielectric constant, leading to variations in impedance, signal degradation, and even failure of the PCB.
Materials with high thermal conductivity help dissipate heat more efficiently, preventing overheating and maintaining stable performance over time. For instance, ceramic materials offer excellent thermal stability and are commonly used in applications requiring high-temperature resistance, such as automotive electronics or military communication systems.
4. Coefficient of Thermal Expansion (CTE)
The coefficient of thermal expansion (CTE) measures how much a material expands when heated. A high CTE can lead to warping and mechanical stress, especially when a PCB is subjected to thermal cycling during operation. This can cause damage to the PCB or result in poor solder joint reliability.
Materials with a low CTE, such as ceramic-filled substrates, are often used in high-frequency applications because they can withstand thermal cycling without compromising the structural integrity of the PCB. These materials help prevent the distortion of traces and vias, ensuring reliable electrical performance.
Popular Materials for High-Frequency PCBs
1. FR-4 (Modified for High Frequency)
FR-4 is the most commonly used material for conventional PCBs due to its cost-effectiveness and ease of processing. However, for high-frequency applications, modified FR-4 materials with better dielectric properties are often used. These modifications can help reduce signal loss and provide a more stable Dk over a wide frequency range.
While FR-4 materials are suitable for low to medium-frequency designs, their performance may be limited in high-frequency applications due to higher loss and inconsistent Dk behavior. For this reason, FR-4 materials are generally only used in high-frequency applications where performance demands are not as stringent.
2. PTFE (Teflon)
PTFE (Polytetrafluoroethylene), commonly known as Teflon, is widely used in high-frequency PCB design due to its low dielectric constant and excellent thermal stability. PTFE-based PCBs have minimal signal attenuation and exhibit low power loss, making them ideal for applications that require high-speed signal transmission, such as telecommunications and satellite communication systems.
PTFE has a stable Dk, which means that signal integrity is maintained even under varying temperature and frequency conditions. As a result, PTFE is often chosen for high-frequency circuits that require superior performance and minimal signal degradation.
3. Rogers Materials
Rogers Corporation is a leading manufacturer of high-performance PCB materials that are designed specifically for high-frequency applications. Materials such as Rogers RO4000 series and RO3000 series offer low dielectric loss and stable Dk values across a wide frequency range. These materials are commonly used in applications like RF (radio frequency), microwave circuits, and 5G technology.
The RO4000 series is known for its low loss factor, which makes it an excellent choice for high-speed, high-frequency applications. These materials are also designed to offer excellent impedance control, which is crucial for maintaining the integrity of high-frequency signals and minimizing reflections and signal distortion.
4. Ceramic Materials
Ceramic-based materials are often used in high-frequency applications that require high thermal stability and low loss. Alumina and zirconia ceramics, for example, offer superior thermal conductivity and low dielectric loss, making them ideal for microwave and RF applications.
Ceramic substrates are also known for their ability to withstand high temperatures and harsh environmental conditions, which is why they are commonly used in aerospace, military, and automotive applications. However, ceramic PCBs tend to be more expensive than traditional FR-4 or PTFE-based materials, making them more suitable for high-end applications where performance is critical.
5. Polyimide
Polyimide is a high-performance polymer that is often used in flexible PCBs for high-frequency applications. It has excellent thermal stability, high resistance to chemicals, and low signal loss. Polyimide-based PCBs are widely used in flexible and rigid-flex designs for applications that require high-frequency signal transmission while maintaining mechanical flexibility, such as wearable electronics and aerospace systems.
Polyimide is especially useful for applications where the PCB needs to conform to a specific shape or fit within tight spaces, and its ability to operate at high temperatures makes it ideal for harsh environments.
The Impact of Material Selection on PCB Performance
The choice of material for a high-frequency PCB directly impacts its performance and overall reliability. The properties of the material—such as dielectric constant, dielectric loss, thermal stability, and CTE—can influence various factors in PCB design, including:
- Signal integrity: Maintaining minimal signal loss and distortion is critical for high-frequency circuits.
- Impedance control: Consistent impedance is essential for reliable signal transmission and to prevent signal reflections.
- Thermal management: Effective heat dissipation ensures that the PCB operates efficiently without overheating.
- Durability: The material must withstand environmental conditions, including temperature changes, humidity, and mechanical stress.
By choosing the right material based on these factors, designers can optimize the performance of their high-frequency PCBs, resulting in more reliable, efficient, and durable electronic devices.
Conclusion
Material selection is a cornerstone of high-frequency PCB design. The right material ensures that high-speed signals are transmitted efficiently, with minimal signal loss and distortion. It also ensures that the PCB can handle the thermal and mechanical stresses typical in high-frequency applications, leading to enhanced durability and reliability.
As the demand for high-performance, high-frequency devices continues to rise—driven by 5G technology, advanced communications, and aerospace—understanding the critical role of material properties in PCB performance will be more important than ever.
