3-Axis CNC Machining: What It Is, How It Works, and Why It Matters
In today’s fast-moving world of manufacturing, accuracy and speed are more important than ever. One widely used method that helps manufacturers meet these goals is 3-axis CNC machining. Whether you’re making car parts, aerospace components, or custom metal pieces, this process has proven its value in producing reliable and precise results.
This article explains what 3-axis machining is, how it works, what types of machines are involved, and where it’s commonly used. It also outlines the key benefits and limitations, helping you understand when this method is the right choice—and when it’s not.
What Is 3-Axis CNC Machining?
3-axis machining is a type of computer-controlled manufacturing process where a cutting tool or workpiece moves along three directions: X (side to side), Y (front to back), and Z (up and down). These three linear axes allow the machine to cut and shape material with great accuracy.
When controlled by a CNC (computer numerical control) system, this setup becomes a powerful and automated solution for creating parts from metal, plastic, wood, and other materials.
This process is known for producing high-quality parts with tight tolerances. It’s widely used in industries that need reliable performance and consistency from one part to the next.
How the 3-Axis Machining Process Works
Movement of the Cutting Tool
The cutting tool in a 3-axis machine moves along three directions:
- X-axis: Moves left and right.
- Y-axis: Moves forward and backward.
- Z-axis: Moves up and down.
These movements allow the tool to cut material from different angles, although only one side of the part can be machined at a time. If different sides need to be worked on, the part must be manually repositioned or reset using a fixture.
Role of CNC Control
CNC systems control the motion of the cutting tool with instructions from a digital file. These instructions are based on a 3D CAD model of the part and guide the machine to follow exact paths and depths. This ensures high repeatability and removes the guesswork from machining.
CNC also automates complex tasks such as drilling holes, carving slots, or milling detailed features. Once programmed, the machine can produce many identical parts with minimal human input.
Importance of the Milling Machine
The most common tool used in 3-axis machining is the CNC milling machine. These machines come with rotating cutting tools that can remove material quickly and accurately. Their ability to move in three linear directions makes them ideal for flat or slightly curved surfaces.
In many setups, the workpiece is held on a fixed table, and the cutting tool moves across it. This layout is best for parts with features located on one surface.
Types of 3-Axis CNC Machines
Several kinds of machines use 3-axis movement, each suited for specific tasks:
1. 3-Axis CNC Milling Machines
These are the most widely used machines for 3-axis work. They can handle a variety of operations including face milling, contouring, drilling, and pocketing. They are ideal for flat parts and are common in prototype development and small-scale production.
2. 3-Axis CNC Machining Centers
Machining centers are advanced versions of milling machines. They combine multiple functions like drilling, tapping, and milling into a single unit. These machines often have automatic tool changers and coolant systems, which boost efficiency and reduce downtime.
3. 3-Axis CNC Lathes
Some CNC lathes come equipped with live tooling, which adds milling functions to a standard turning machine. These lathes can perform 3-axis operations by moving the cutting tool in three directions while rotating the workpiece. They’re useful for cylindrical parts that need added features like holes or slots.
4. 3-Axis CNC Routers
CNC routers are mostly used for cutting softer materials like wood, foam, and plastic. They are popular in furniture making, sign carving, and custom panel fabrication. While not suitable for heavy metals, they offer great flexibility in design work.
5. 3-Axis CNC Engraving Machines
These machines are specialized for creating detailed text, logos, or decorative patterns. They are commonly used for marking nameplates, molds, and jewelry pieces. Their fine-tipped tools and smooth motion are ideal for small-scale designs.
6. 3-Axis CNC Plasma Cutters
These cutters use a high-temperature plasma arc to slice through metal. Although they don’t offer the same level of detail as milling machines, they are great for cutting thick sheet metal quickly and cleanly. The tool head moves in three directions to trace out shapes and contours.
Common Applications of 3-Axis Machining
Because of its flexibility and precision, 3-axis machining is used across many industries:
Automotive
Manufacturers use 3-axis machines to produce parts like engine blocks, transmission housings, brake components, and custom brackets. The repeatability of the process ensures consistent quality from one unit to the next.
Aerospace
In aerospace, tight tolerances are critical. 3-axis machining is used to produce structural parts, control surfaces, and mounting brackets. Even minor inaccuracies in these parts could affect performance, so reliability is key.
Medical
The medical field depends on 3-axis machining to make surgical tools, orthopedic implants, and dental components. These parts often need smooth finishes and custom shapes, which this process can deliver.
Electronics
Electronic manufacturers use this technology to create precise parts like housings, heat sinks, and connector components. The high repeatability of CNC machining is ideal for the small, delicate parts often found in electronic devices.
Mold and Die Making
3-axis machining is also important in the tool and die industry. Molds for plastic injection, stamping dies, and casting forms are usually made with high precision using CNC machines.
Construction Equipment
CNC machines help build custom hydraulic parts, brackets, and bushings used in heavy machinery. The ability to produce durable parts quickly is a major advantage for equipment makers.
Advantages of 3-Axis CNC Machining
1. Reliable Accuracy
Because the cutting paths are controlled by a computer, the process produces highly accurate parts with minimal variation. This is especially useful for parts that need tight tolerances or exact dimensions.
2. Wide Compatibility
3-axis machining works with many materials, including aluminum, steel, brass, plastics, and wood. This makes it suitable for almost any industry.
3. Automated Operation
Once programmed, the CNC machine runs automatically. This reduces human error, lowers labor costs, and allows for overnight or unattended production.
4. Cost-Efficient for Simple Geometries
For parts with features on one side or basic geometries, 3-axis machining is a cost-effective choice. The machines are often less expensive to buy and maintain compared to more advanced systems.
Disadvantages of 3-Axis CNC Machining
1. Limited to Three Directions
While 3-axis machines can produce many types of parts, they struggle with more complex shapes. Undercuts, deep cavities, or parts that need work on multiple sides usually require repositioning or a different machine.
2. Manual Repositioning Increases Time
To work on multiple surfaces of a part, the operator must stop the machine and reset the workpiece. This increases setup time and introduces a risk of alignment errors.
- Not Ideal for Complex Surfaces
For parts with curved surfaces or irregular geometries, a 5-axis or multi-axis machine is often a better option. 3-axis machining may require more setups, which can reduce efficiency.
3-Axis vs. 5-Axis Machining
The key difference between 3-axis and 5-axis machining is movement capability.
3-axis machines move in X, Y, and Z directions. They are best for flat parts or features on one side.
5-axis machines include two extra rotary movements, usually labeled A and B. This allows the tool or workpiece to rotate, giving access to more complex angles and surfaces.
While 5-axis machining allows for more intricate designs and fewer setups, it comes with a higher price tag. It also requires more skill to operate and program, which may not be necessary for every project.

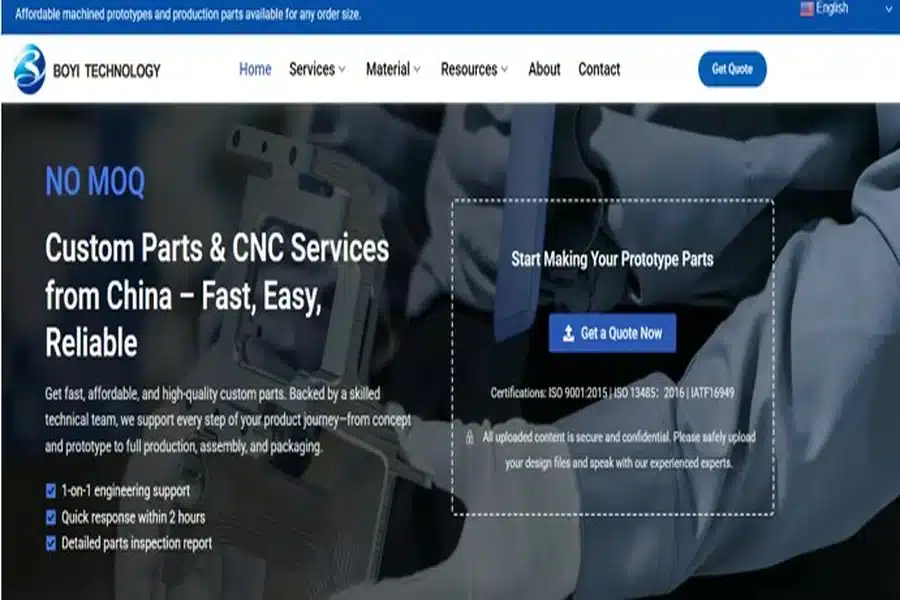

Get CNC Machining Service
Ready to bring your ideas to life with BOYI TECHNOLOGY’s industry‑leading CNC machining service? Upload your CAD files now and receive a custom, no‑obligation quote within 24 hours. Their expert team will optimize your design for maximum precision and efficiency, so you get high‑quality parts on time and on budget.
Conclusion
3-axis CNC machining is a proven, versatile solution for producing accurate parts in a wide range of industries. Its ability to handle different materials, run automatically, and deliver consistent results makes it a core process in modern manufacturing.
However, it’s important to recognize its limits. For highly complex parts or those requiring work on multiple surfaces, 5-axis machining may be a better choice. Still, for many applications, the efficiency, cost-effectiveness, and precision of 3-axis machining are hard to beat.
Whether you’re developing prototypes, producing small batches, or running full-scale production, understanding how 3-axis machining works can help you make smarter manufacturing decisions.
